APTC60TDUM24TPG Datasheet - Microsemi

APTC60TDUM24TPG Triple dual Common Source Super Junction MOSFET Power Module

APTC60TDUM24TPG Features

* - Ultra low RDSon - Low Miller capacitance - Ultra low gate charge - Avalanche energy rated - Very rugged Kelvin source for easy drive Very low stray inductance - Symmetrical design - Lead frames for power connections High level of integration Internal thermistor for temperature monitoring

APTC60TDUM24TPG_Microsemi.pdf

Preview of APTC60TDUM24TPG PDF

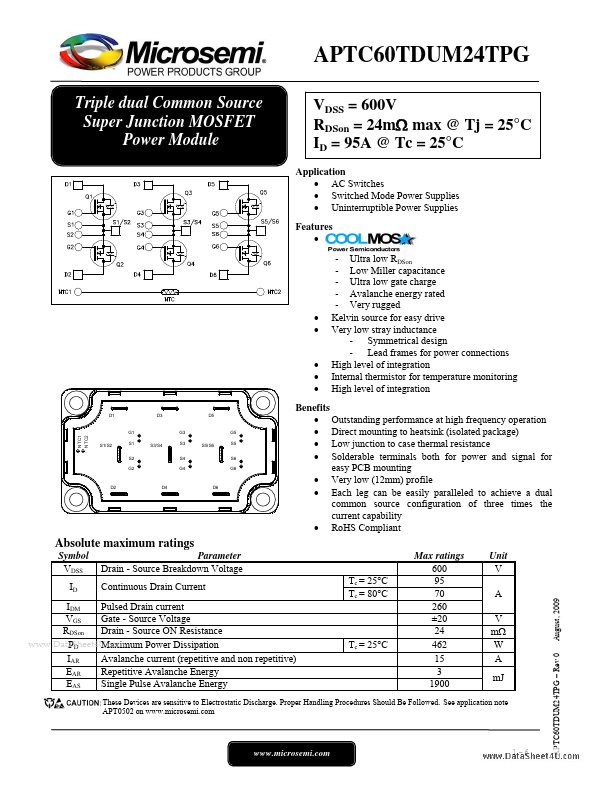

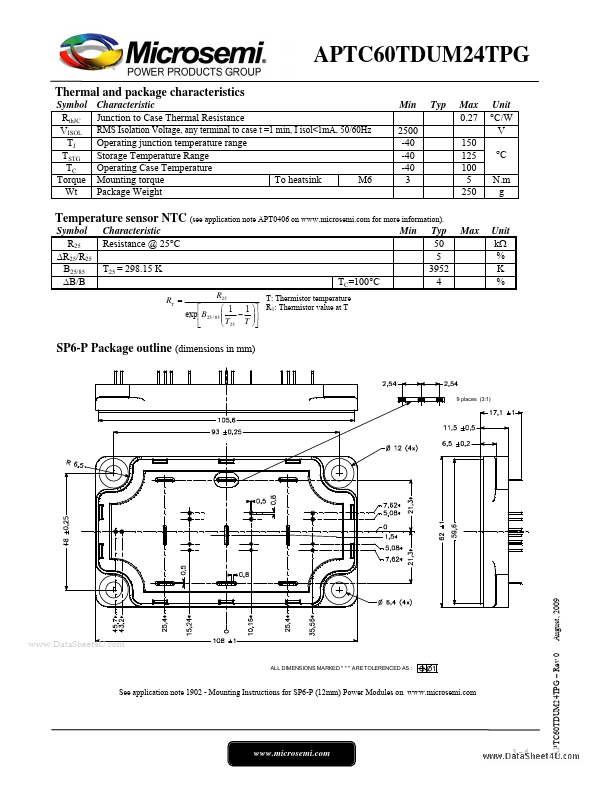

APTC60TDUM24TPG Datasheet Preview Page 2 APTC60TDUM24TPG Datasheet Preview Page 3

Datasheet Details

Part number:

APTC60TDUM24TPG

Manufacturer:

Microsemi ↗

File Size:

284.37 KB

Description:

Triple dual common source super junction mosfet power module.
