CD645 GENERAL PURPOSE SILICON DIODES

12 MILS 24 MILS GENERAL PURPOSE SILICON DIODES ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES EXCEPT SOLDER REFLOW MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified TYPE CD483B CD485B CD486B CD645 CD5194 CD5195 CD5196 VRM V(pk) 80 180 250 270 80 180 250 VRWM V(pk) 70 180 225 225 70 180 225 .

CD645 Datasheet (39.86 KB)

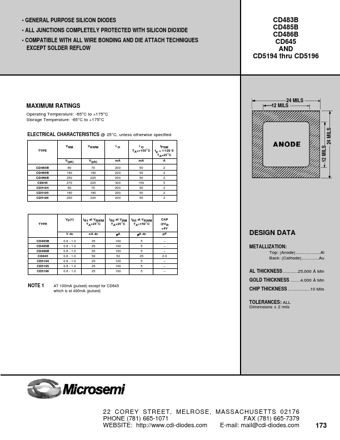

CD645 Datasheet Preview — Preview of CD645 PDF

Datasheet Details

Part number:

CD645

Manufacturer:

Microsemi ↗

File Size:

39.86 KB

Description:

General purpose silicon diodes.
