GC4943 - (GC4902 - GC4946) BEAMLEAD PIN DIODES

Download the GC4943 datasheet PDF. This datasheet also covers the GC4902 variant, as both devices belong to the same (gc4902 - gc4946) beamlead pin diodes family and are provided as variant models within a single manufacturer datasheet.

General Description

Semiconductor mesa beam lead PIN diodes are designed for very low inductance, low resistance and moderately low capacitance with ultra fast switching characteristics.

Key Features

  • Wide Bandwidth / High Switching Speed.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GC4902_Microsemi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GC4004N0SBY1B LCD Solomon
GC4116 MULTI-STANDARD QUAD DUC CHIP ETC
GC4130A Low Distortion AGC Amplifier Gennum
GC4701 LIMITER DIODES Microsemi Corporation
GC4702 LIMITER DIODES Microsemi Corporation

Other Datasheets by Microsemi (Microchip)

Part Number Description
GC4941 (GC4902 - GC4946) BEAMLEAD PIN DIODES
GC4942 (GC4902 - GC4946) BEAMLEAD PIN DIODES
GC4944 (GC4902 - GC4946) BEAMLEAD PIN DIODES
GC4945 (GC4902 - GC4946) BEAMLEAD PIN DIODES
GC4946 (GC4902 - GC4946) BEAMLEAD PIN DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

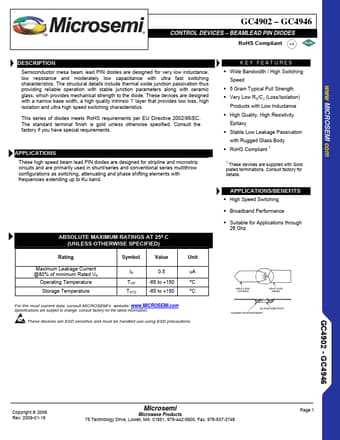

GC4902 – GC4946 TM ® CONTROL DEVICES – BEAMLEAD PIN DIODES RoHS Compliant KEY FEATURES  Wide Bandwidth / High Switching Speed DESCRIPTION Semiconductor mesa beam lead PIN diodes are designed for very low inductance, low resistance and moderately low capacitance with ultra fast switching characteristics. The structural details include thermal oxide junction passivation thus providing reliable operation with stable junction parameters along with ceramic glass, which provides mechanical strength to the diode. These devices are designed with a narrow base width, a high quality intrinsic ‘I’ layer that provides low loss, high isolation and ultra high speed switching characteristics. This series of diodes meets RoHS requirements per EU Directive 2002/95/EC.
