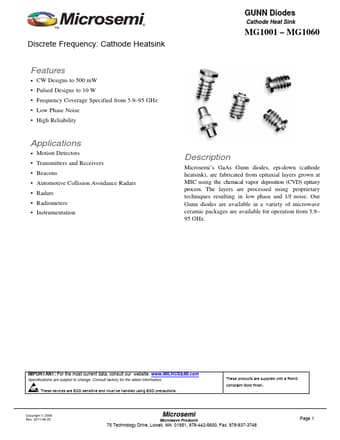

MG1001 Datasheet, Diodes, Microsemi

MG1001 Features

• Diodes
• CW Designs to 500 mW
• Pulsed Designs to 10 W
• Frequency Coverage Specified from 5.9
    –95 GHz
• Low Phase Noise
• High Reliabili

PDF File Details

Part number:

MG1001

Manufacturer:

Microsemi ↗

File Size:

205.73kb

Download:

📄 Datasheet

Description:

Gunn diodes. Microsemi’s GaAs Gunn diodes, epi-down (cathode heatsink), are fabricated from epitaxial layers grown at MSC using the chemical vapor

MG1001 Application

• Applications
• Motion Detectors
• Transmitters and Receivers
• Beacons
• Automotive Collision Avoidance Radars
