MPS4102-013S Description

MPS4101-012S & MPS4102-013S CONTROL DEVICE ® MONOLITHIC SPST PIN RoHS Compliant GENERAL .
KEY FEATURES The MPS4101‐012S and MPS4102‐013S are a single chip silicon monolithic series/shunt element.

MPS4102-013S Features

* The MPS4101‐012S and MPS4102‐013S are a single chip silicon monolithic series/shunt element. The parasitic inductance is minimized
* Monolithic SPST PIN switch element in this design resulting in wide band, low loss, high isolation
* Wide Band (0.05‐ 40 GHz) performance.

MPS4102-013S Applications

* >35dB at 18GHz
* >25dB at 36GHz
* 3W CW power handling
* Hermetic Structure This shunt/series monolithic switching element provides optimum insertion loss and isolation characteristics up to 40GHz. It replaces the conventional shunt mounted chip and ser

📥 Download Datasheet

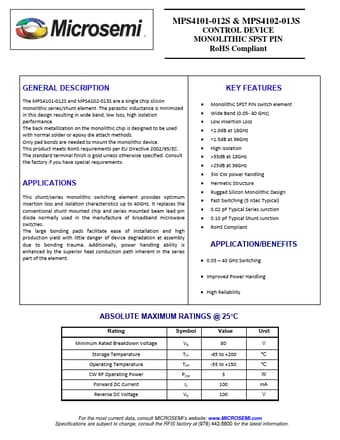

MPS4102-013S Datasheet Preview — This datasheet PDF includes multiple part numbers: MPS4102-013S, MPS4101-012S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: MPS4102-013S, MPS4101-012S
Manufacturer: Microsemi ↗
File Size: 879.95 KB
Datasheet: MPS4101-012S-Microsemi.pdf
Description: CONTROL DEVICE MONOLITHIC
Note: This datasheet PDF includes multiple part numbers: MPS4102-013S, MPS4101-012S.
Please refer to the document for exact specifications by model.
