MPS404 Datasheet - Motorola

MPS404 CHOPPER TRANSISTOR

MPS404 MPS404A CASE 29-02, STYLE 1 TO-92 (TO-226AA) CHOPPER TRANSISTOR PNP SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous Total Device Dissipation (go T^ = 25°C Derate above 25°C @Total Device Dissipation Tq = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol MPS404 MPS404A VCEO 24 35 VCBO 25 40 VEBO 12 25 "C 150 PD 625 5.0 Pd 1.5 12 TJ' Tstg - 55 to + 1 50 Uni.

MPS404 Datasheet (141.58 KB)

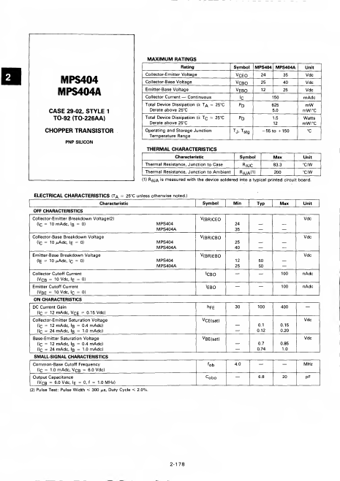

Preview of MPS404 PDF

Datasheet Details

Part number:

MPS404

Manufacturer:

Motorola

File Size:

141.58 KB

Description:

Chopper transistor.
