MPT-10 - 1500 Watt Low Clamping Factor Transient Voltage Suppressor

Microsemi

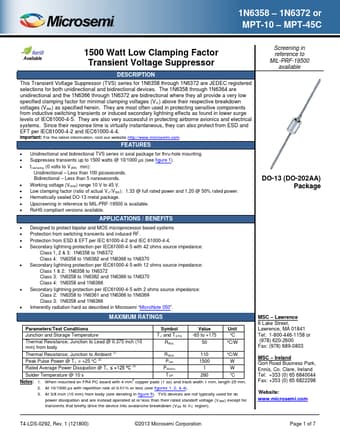

MPT-10 Datasheet Preview — Preview of MPT-10 PDF

Datasheet Details

Part number	MPT-10
Manufacturer	Microsemi ↗
File Size	564.25 KB
Description	1500 Watt Low Clamping Factor Transient Voltage Suppressor
Datasheet	MPT-10-Microsemi.pdf

MPT-10 Product details

Description

This Transient Voltage Suppressor (TVS) series for 1N6358 through 1N6372 are JEDEC registered selections for both unidirectional and bidirectional devices.

Features

Screening in reference to MIL-PRF-19500 available.
Unidirectional and bidirectional TVS series in axial package for thru-hole mounting.
Suppresses transients up to 1500 watts @ 10/1000 µs (see figure 1).
tclamping (0 volts to V(BR) min): Unidirectional.
Less than 100 picoseconds. Bidirectional.
Less than 5 nanoseconds.
Working voltage (VWM) range 10 V to 45 V.
Low clamping factor (ratio of actual VC/VBR): 1.33 @ full rated powe.
