MPT-10C, MPT-10 Datasheet - Microsemi

MPT-10C 1500 Watt Low Clamping Factor Transient Voltage Suppressor

This Transient Voltage Suppressor (TVS) series for 1N6358 through 1N6372 are JEDEC registered selections for both unidirectional and bidirectional devices. The 1N6358 through 1N6364 are unidirectional and the 1N6366 through 1N6372 are bidirectional where they all provide a very low specified clampin.

MPT-10C Features

* Screening in reference to MIL-PRF-19500 available

* Unidirectional and bidirectional TVS series in axial package for thru-hole mounting.

* Suppresses transients up to 1500 watts @ 10/1000 µs (see figure 1).

* tclamping (0 volts to V(BR) min): Unidirectional

* Less t

MPT-10-Microsemi.pdf

This datasheet PDF includes multiple part numbers: MPT-10C, MPT-10. Please refer to the document for exact specifications by model.

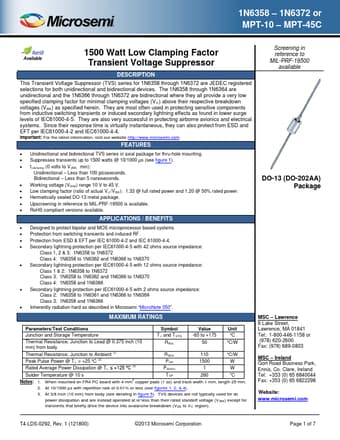

MPT-10C Datasheet Preview Page 2 MPT-10C Datasheet Preview Page 3

Datasheet Details

Part number:

MPT-10C, MPT-10

Manufacturer:

Microsemi ↗

File Size:

564.25 KB

Description:

1500 watt low clamping factor transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: MPT-10C, MPT-10.
Please refer to the document for exact specifications by model.
