MS1578, RF & MICROWAVE TRANSISTORS 800-960MHz CELLULAR BASE STATION

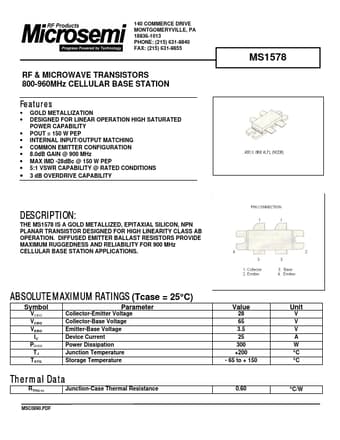

140 COMMERCE DRIVE MONTGOMERYVILLE, PA 18936-1013 PHONE: (215) 631-9840 FAX: (215) 631-9855 MS1578 RF & MICROWAVE TRANSISTORS 800-960MHz CELLULAR BAS.
THE MS1578 IS A GOLD METALLIZED, EPITAXIAL SILICON, NPN PLANAR TRANSISTOR DESIGNED FOR HIGH LINEARITY CLASS AB OPERATION.

datasheet Preview Page 1 from Datasheet4u.com

MS1578_Microsemi.pdf

MS1578 Datasheet Preview — Preview of MS1578 PDF

Datasheet Details

Part number:

MS1578

Manufacturer:

Microsemi ↗

File Size:

411.43 KB

Description:

RF & MICROWAVE TRANSISTORS 800-960MHz CELLULAR BASE STATION

Features

* GOLD METALLIZATION DESIGNED FOR LINEAR OPERATION HIGH SATURATED POWER CAPABILITY POUT = 150 W PEP INTERNAL INPUT/OUTPUT MATCHING COMMON EMITTER CONFIGURATION 8.0dB GAIN @ 900 MHz MAX IMD -28dBc @ 150 W PEP 5:1 VSWR CAPABILITY @ RATED CONDITIONS 3 dB OVERDRIVE CAPABILITY

Applications

* ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C) Symbol VCEO VCBO VEBO IC PDISS TJ T STG Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Device Current Power Dissipation Junction Temperature Storage Temperature Value 28 65 3.5 25 300 +200 - 65 to + 150 Unit V V V A W °C °
