MS1401 RF & MICROWAVE TRANSISTORS

MS1401 Features

* W W W . Microsemi . COM The MS1401 is a 7.5 V Class C epitaxial silicon NPN planar transistor designed primarily for VHF communications. It withstands severe mismatch under operating conditions. 150 MHz !" 7.5 Volts !" Common Emitter !" POUT = 2.5 W Min. !" GP = 11.0 dB Gain !" APPLICATIONS/BENEF

MS1401 Datasheet (51.47 KB)

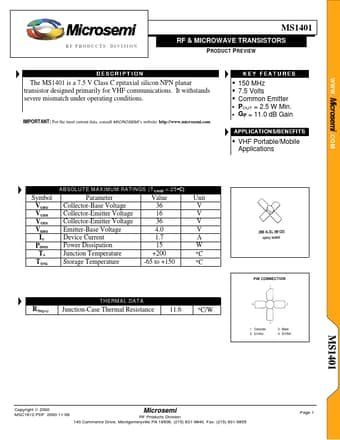

MS1401 Datasheet Preview — Preview of MS1401 PDF

Datasheet Details

Part number:

MS1401

Manufacturer:

Microsemi ↗

File Size:

51.47 KB

Description:

Rf & microwave transistors.
