MS1404

RF & MICROWAVE TRANSISTORS UHF MOBILE APPLICATIONS

MS1404 Features

* 470 MHz 12.5 VOLTS POUT = 5.0 WATT GP = 8.5 dB MINIMUM COMMON EMITTER CONFIGURATION DESCRIPTION: The MS1404 is a 12.5V Class C epitaxial silicon NPN planar transistor designed primarily for UHF communications. This device utilizes improved metalliza

MS1404 General Description

The MS1404 is a 12.5V Class C epitaxial silicon NPN planar transistor designed primarily for UHF communications. This device utilizes improved metallization to achieve infinite VSWR at rated operating conditions. ABSOLUTE MAXIMUM RATINGS (Tcase = 25° C) Symbol VCBO VCER VCES VEBO PDISS IC TJ T STG.

MS1404 Datasheet (207.53 KB)

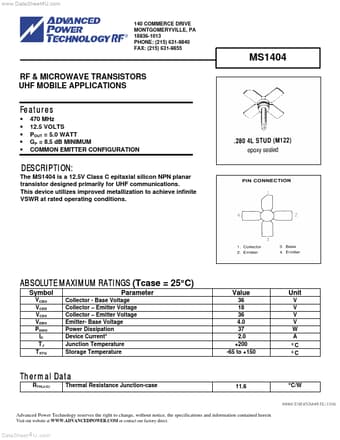

Preview of MS1404 PDF

Datasheet Details

Part number:

MS1404

Manufacturer:

Advanced Power Technology

File Size:

207.53 KB

Description:

Rf & microwave transistors uhf mobile applications.
www.DataSheet4U.com 140 COMMERCE DRIVE MONTGOMERYVILLE, PA 18936-1013 PHONE: (215) 631-9840 FAX: (215) 631-9855 MS1404 RF & MICROWAVE TRANSISTORS UH.
