MS1403 RF & MICROWAVE TRANSISTORS

MS1403 Features

* W W W . Microsemi . COM The MS1403 is a 7.5 V epitaxial silicon NPN planar transistor designed primarily for VHF communications. It withstands very high VSWR under rated operating conditions. 175 MHz !" 7.5 Volts !" Common Emitter !" POUT = 1.4 W Min. !" GP = 7.0 dB Gain !" APPLICATIONS/BENEFITS

MS1403_Microsemi.pdf

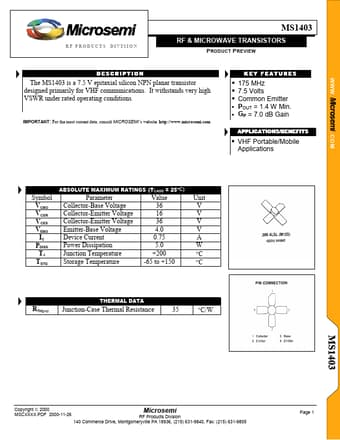

MS1403 Datasheet Preview — Preview of MS1403 PDF

Datasheet Details

Part number:

MS1403

Manufacturer:

Microsemi ↗

File Size:

176.21 KB

Description:

Rf & microwave transistors.
