MSMLG100A Surface Mount 3000 Watt Transient Voltage Suppressor

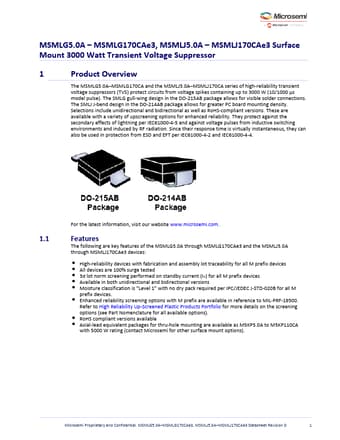

MSMLG5.0A MSMLG170CAe3, MSMLJ5.0A MSMLJ170CAe3 Surface Mount 3000 Watt Transient Voltage Suppressor 1 Product Overview The MSMLG5.0A MSMLG170CA and the MSMLJ5.0A MSMLJ170CA series of high-reliability transient voltage suppressors (TVS) protect circuits from voltage spikes containing up to 3000 W (10/1000 μs model pulse). The SMLG gull-wing design in the DO-215AB package allows for visible solder connections. The SMLJ J-bend design in the DO-214AB package allow.

MSMLG100A Features

* The following are key features of the MSMLG5.0A through MSMLG170CAe3 and the MSMLJ5.0A through MSMLJ170CAe3 devices: High-reliability devices with fabrication and assembly lot traceability for all M prefix devices All devices are 100% surge tested 3σ lot norm screening performed on standby current (

MSMLG100A Datasheet (895.06 KB)
