MXP1004-PS, Position Sensing Photo Detectors

2830 S.Fairview St.Santa Ana, CA 92704 PH: 714.979.8220 FAX: 714.557.5989 Position Sensing Photo Detectors .

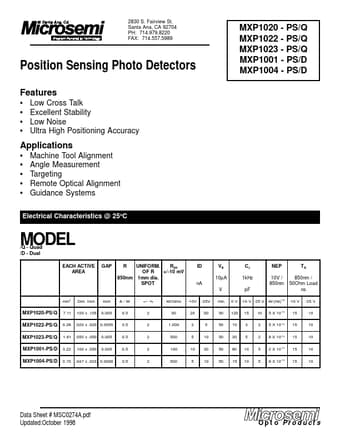

datasheet Preview Page 1 from Datasheet4u.com

MXP1004-PS_MicrosemiCorporation.pdf

MXP1004-PS Datasheet Preview — Preview of MXP1004-PS PDF

Datasheet Details

Part number:

MXP1004-PS

Manufacturer:

Microsemi ↗

File Size:

39.38 KB

Description:

Position Sensing Photo Detectors

Features

* Low Cross Talk Excellent Stability Low Noise Ultra High Positioning Accuracy Machine Tool Alignment Angle Measurement Targeting Remote Optical Alignment Guidance Systems MXP1020 - PS/Q MXP1022 - PS/Q MXP1023 -

Applications

* Electrical Characteristics @ 25oC MODEL /Q - Quad /D - Dual EACH ACTIVE AREA GAP RSH UNIFORM. +/-10 mV OF R 850nm 1mm dia. SPOT R ID VB 10µA nA V mm2 Dim. Inch .105 x .105 Inch 0.005 A/W 0.5 0.5 0.5 0.5 0.5 +/- % 2 2 2 2 2 MOhms 50 1,000 500 100 500 -10V 20 2 5 10 5 -25V 50 5 10 20 10 min 50 50 50
