SG2543

Power Supply Output Supervisory Circuit

SG2543 Features

* Over-Voltage, Under-Voltage, and Current Sensing Circuits all included.

* Reference Voltage Trimmed to 1% Accuracy.

* SCR "Crowbar" Drive of 300mA.

* Programmable Time Delays.

* Open-Collector Outputs and Remote Activation Capability.

* Total Standby Current less than 10mA.

SG2543 General Description

This monolithic integrated circuit contains all the functions necessary to monitor and control the output of a sophisticated power supply system. Over-voltage (O.V.) sensing with provision to trigger an external SCR “crowbar” shutdown; an under-voltage (U.V.) circuit which can be used to monitor eit.

SG2543 Datasheet (505.46 KB)

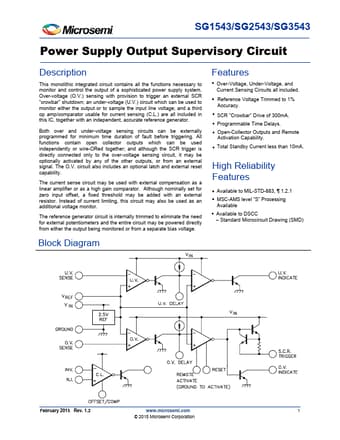

Preview of SG2543 PDF

Datasheet Details

Part number:

SG2543

Manufacturer:

Microsemi ↗

File Size:

505.46 KB

Description:

Power supply output supervisory circuit.
