UT3005 Standard Recovery Rectifiers

UT3005 Description

UT2005 * UT2060, UT3005 * UT3060, and UT4005 * UT4060 Available 2 Amp To 4 Amp Standard Recovery Rectifiers .
High average power and surge capability make these series of devices attractive in many highreliability applications.

UT3005 Features

* Miniature voidless hermetically sealed glass package.
* Continuous current ratings up to 4 amps.
* Extremely robust construction.
* Internal “Category 1” metallurgical bonds.

UT3005 Applications

* All Microsemi rectifiers have a sleeve of pure hard glass fused to the silicon junction. Since the silicon sees only this glass, electrical characteristics are permanently stable. This voidless, monolithic package is totally unaffected by the most severe moisture or temperature testing. Consult fac

📥 Download Datasheet

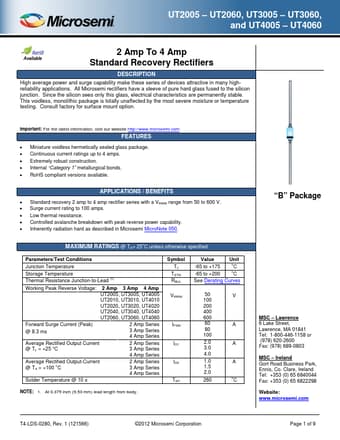

Preview of UT3005 PDF
datasheet Preview Page 2 datasheet Preview Page 3
