1N5811C - Superfast Rectifier Diode

Features

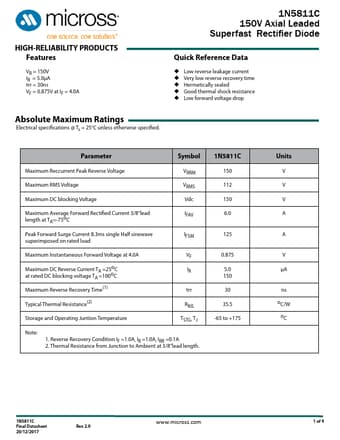

  • VR = 150V IR = 5.0µA trr = 30ns VF = 0.875V at IF = 4.0A 1N5811C 150V Axial Leaded Superfast Rectifier Diode Quick Reference Data ‹ Low reverse leakage current ‹ Very low reverse recovery time ‹ Hermetically sealed ‹ Good thermal shock resistance ‹ Low forward voltage drop Absolute Maximum Ratings Electrical specifications @ TA = 25oC unless otherwise specified. Parameter Symbol Maximum Reccurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC blocking Voltage VRRM VRMS Vdc Maximum A.

📥 Download Datasheet

Datasheet Details

Part number 1N5811C
Manufacturer Micross
File Size 148.68 KB
Description Superfast Rectifier Diode
Datasheet download datasheet 1N5811C Datasheet
