MST5325B

Low Dropout Voltage Regulator

MST5325B Features

* integrated short-circuit and thermal shutdown protection. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable voltages.

* Application

* Battery-powered equipment

* Smoke detector and sensor

* Microcontroller Appl

MST5325B General Description

The MST53XXB series is a high voltage ， ultralow-power，low dropout voltage regulator. The device can deliver 100mA output current with a dropout voltage of 300mV and allows an input voltage as high as 35V. The typical quiescent current is only 1.6µA. The device is available in fixed output voltages .

MST5325B Datasheet (821.78 KB)

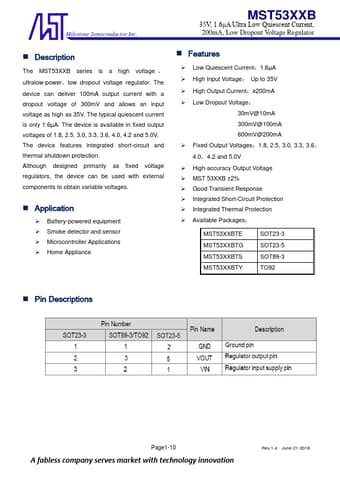

MST5325B Datasheet Preview — Preview of MST5325B PDF

Datasheet Details

Part number:

MST5325B

Manufacturer:

Milestone Semiconductor

File Size:

821.78 KB

Description:

Low dropout voltage regulator.
