MST5151A

SXGA LCD TV Controller

MStar Semiconductor

MST5151A Features

* Ÿ LCD TV controller with PC & multimedia display functions Ÿ Input supports up to UXGA & 1080P Ÿ Supports up to SXGA panels Ÿ Integrated two-port triple-ADC/PLL Ÿ Integrated DVI/HDCP/HDMI compliant receiver Ÿ YUV422 digital video input ports Ÿ Dual high-quality scaling engines Ÿ Dual 3-D video de-in

MST5151A General Description

The MST5151A is a high performance and fully integrated graphics processing IC solution for multi-function LCD monitor/TV with resolutions up to SXGA. It is configured with an integrated triple-ADC/PLL, an integrated DVI/HDCP/HDMI receiver, two video de-interlacers, two high quality scaling engines,.

MST5151A Datasheet (271.42 KB)

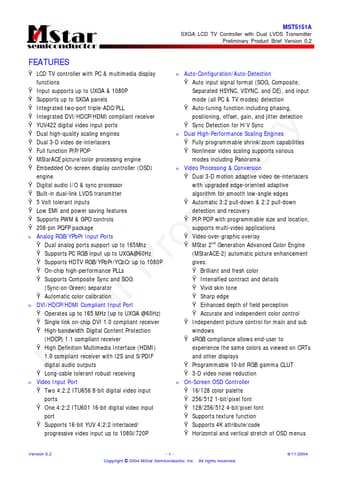

MST5151A Datasheet Preview — Preview of MST5151A PDF

Datasheet Details

Part number:

MST5151A

Manufacturer:

MStar Semiconductor

File Size:

271.42 KB

Description:

Sxga lcd tv controller.
