HN4064CG - QUAD 10/100 Base Tx Transformer

Product Overview

Mingtek

Part number	HN4064CG
Manufacturer	Mingtek
File Size	120.25 KB
Description	QUAD 10/100 Base Tx Transformer
Datasheet	HN4064CG Datasheet
Note	This datasheet PDF includes multiple part numbers: HN4064CG, HN4464SG. Please refer to the document for exact specifications by model.

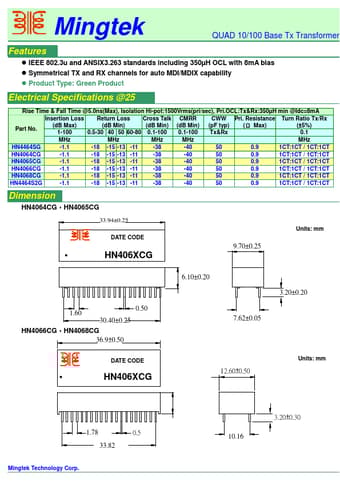

Additional preview pages of the HN4064CG datasheet.

Electrical Specifications @25¢J QUAD 10/100 Base Tx Transformer.
IEEE 802.3u and ANSIX3.263 standards including 350µH OCL with 8mA bias.
Symmetrical TX and RX channels for auto MDI/MDIX capability.
Product Type: Green Product Rise Time & Fall Time @5.0ns(Max), Isolation Hi-pot:1500Vrms(pri/sec), Pri. OCL:Tx&Rx:350µH min @Idc=8mA Insertion Loss Return Loss Cross Talk CMRR CWW Pri. Resistance Turn Ratio Tx/Rx (dB Max) (dB Min) (dB Min) (dB Min) (pF typ) (Ω Max) (±5%) Part No. 1-10.
