HN4066CG - QUAD 10/100 Base Tx Transformer

This page provides the datasheet information for the HN4066CG, a member of the HN4464SG QUAD 10/100 Base Tx Transformer family.

Datasheet Summary

Features

  • Electrical Specifications @25¢J QUAD 10/100 Base Tx Transformer.
  • IEEE 802.3u and ANSIX3.263 standards including 350µH OCL with 8mA bias.
  • Symmetrical TX and RX channels for auto MDI/MDIX capability.
  • Product Type: Green Product Rise Time & Fall Time @5.0ns(Max), Isolation Hi-pot:1500Vrms(pri/sec), Pri. OCL:Tx&Rx:350µH min @Idc=8mA Insertion Loss Return Loss Cross Talk CMRR CWW Pri. Resistance Turn Ratio Tx/Rx (dB Max) (dB Min) (dB Min) (dB Min) (pF typ) (Ω Max) (±5%) Part No. 1-10.

📥 Download Datasheet

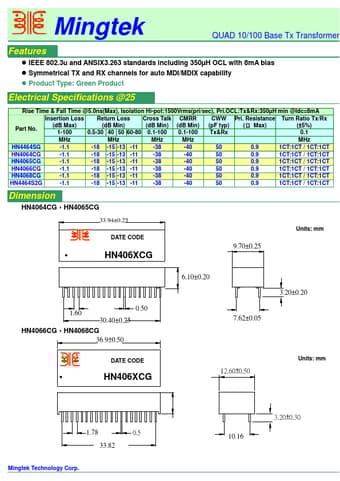

Datasheet preview – HN4066CG
