y Good return loss, 22 dB in 1 dB bandwidth y Excellent amplitude unbalance, 0.1 dB typ. and phase unbalance, 2 deg. typ.
in 1dB bandwidth y Aqueous washable y Protected
✔ ADT1-1+ Application
y Impedance matching y Baluns
Parameter
ELECTRICAL SPECIFICATIONS AT 25°C
Frequency (MHz)
Min.
Typ.
Im

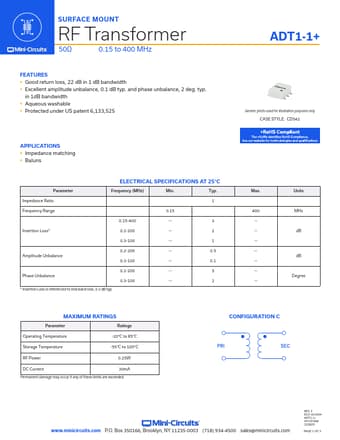

ADT1-1 - RF Transformer
(Mini-Circuits)
Surface Mount
..
RF Transformer
50Ω 0.15 to 400 MHz
-20°C to 85°C -55°C to 100°C 0.25W 30mA
ADT1-1+ ADT1-1
Maximum Ratings
Operati.
ADT1-1WT - RF Transformer
(Mini-Circuits)
Surface Mount NON-CATALOG
RF Transformer
ADT1-1WT
75Ω 0.4 to 800 MHz
Maximum Ratings
Operating Temperature
-20°C to 85°C
Storage Temperature
-.
ADT1-1WT+ - RF Transformer
(Mini-Circuits)
Surface Mount
RF Transformer
75Ω 0.4 to 800 MHz
ADT1-1WT+
Maximum Ratings
Operating Temperature
-20°C to 85°C
Storage Temperature
-55°C to 100°C.
ADT1-1WT-1 - Surface Mount RF Transformer
(Mini-Circuits)
Surface Mount
RF Transformer
..
ADT1-1WT-1
1 to 400 MHz
Maximum Ratings
Operating Temperature Storage Temperature RF Power -40°C t.
ADT1-1WT-1+ - RF Transformer
(Mini-Circuits)
Surface Mount
RF Transformer
75Ω 1 to 400 MHz
ADT1-1WT-1+
Maximum Ratings
Operating Temperature
-20°C to 85°C
Storage Temperature
-55°C to 100°C.
ADT1-6T - RF Transformer
(Mini-Circuits)
RSurFfaceTMoruant nsformer
50Ω 0.03 to 125 MHz
ADT1-6T+ ADT1-6T
Maximum Ratings
Operating Temperature
-20°C to 85°C
Storage Temperature
-55.
ADT1-6T+ - RF Transformer
(Mini-Circuits)
Surface Mount
RF Transformer
50Ω 0.03 to 125 MHz
ADT1-6T+
Maximum Ratings
Operating Temperature
-20°C to 85°C
Storage Temperature
-55°C to 100°C.
ADT1.5-1+ - RF Transformer
(Mini-Circuits)
SURFACE MOUNT
RF Transformer
50Ω 0.5 to 650 MHz
FEATURES y Excellent return loss, 17 dB typ. in 1 dB bandwidth y Aqueous washable y Protected under US.
