ADT1-1WT-1+ RF Transformer

Surface Mount RF Transformer 75Ω 1 to 400 MHz ADT1-1WT-1+ Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C RF Power 250mW DC Current 30mA Permanent damage may occur if any of these limits are exceeded. Pin Connections PRIMARY DOT 3 PRIMARY 1 SECONDARY DOT 4 SECONDARY 6 SECONDARY CT 5 NOT USED 2 Outline Drawing PCB Land Pattern Suggested Layout, Tolerance to be within ± .002 Outline Dimensions ( ) inch mm A B C D E F .

ADT1-1WT-1+ Features

* 1dB bandwidth covers entire frequency range

* good return loss, 21 dB typ.

* leaded surface mount

* aqueous washable

* protected under US patent 6,133,525 Applications

* high speed data communications

* baluns Generic photo used for illustra

ADT1-1WT-1+-Mini-Circuits.pdf

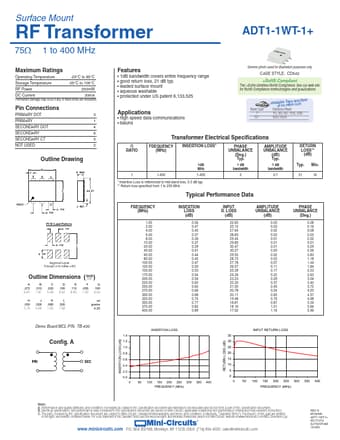

ADT1-1WT-1+ Datasheet Preview — This datasheet PDF includes multiple part numbers: ADT1-1WT-1+, ADT1-1WT-1+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADT1-1WT-1+, ADT1-1WT-1+-Mini

Manufacturer:

Mini-Circuits

File Size:

186.07 KB

Description:

Rf transformer.

Note:

This datasheet PDF includes multiple part numbers: ADT1-1WT-1+, ADT1-1WT-1+-Mini.
Please refer to the document for exact specifications by model.
