ADT1-6T+, ADT1-6T+-Mini, RF Transformer

Surface Mount RF Transformer 50Ω 0.03 to 125 MHz ADT1-6T+ Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -55°C to 100°C.

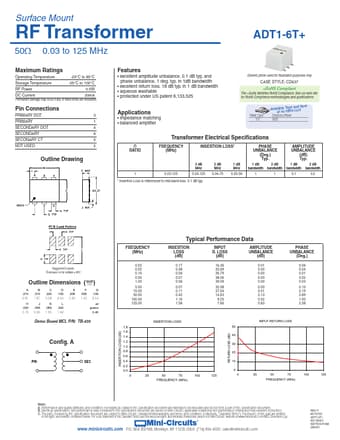

ADT1-6T+-Mini-Circuits.pdf

ADT1-6T+ Datasheet Preview — This datasheet PDF includes multiple part numbers: ADT1-6T+, ADT1-6T+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADT1-6T+, ADT1-6T+-Mini

Manufacturer:

Mini-Circuits

File Size:

188.41 KB

Description:

RF Transformer

Note:

This datasheet PDF includes multiple part numbers: ADT1-6T+, ADT1-6T+-Mini.
Please refer to the document for exact specifications by model.

Features

* excellent amplitude unbalance, 0.1 dB typ. and phase unbalance, 1 deg. typ. in 1dB bandwidth
* excellent return loss, 18 dB typ. in 1 dB bandwidth
* aqueous washable

Applications

* impedance matching
* balanced amplifier Generic photo used for illustration purposes only CASE STYLE: CD637 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications Reel Size 13” Availaatbnleo TeaxptreaacnodstR
