ADT8-1T

RF Transformer

ADT8-1T Features

* excellent amplitude unbalance, 0.05 dB typ. in 1 dB bandwidth

* excellent return loss, 20 dB typ. in 1 dB bandwidth

* aqueous washable

* protected under US patent 6,133,525 Applications

* impedance matching

* balanced amplifiers CASE STYLE: CD637

ADT8-1T Datasheet (142.58 KB)

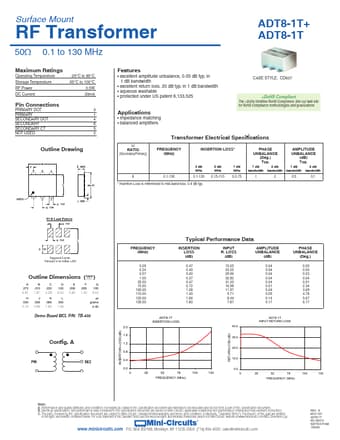

Preview of ADT8-1T PDF

Datasheet Details

Part number:

ADT8-1T

Manufacturer:

Mini-Circuits

File Size:

142.58 KB

Description:

Rf transformer.
RSurFfaceTMoruant nsformer 50Ω 0.1 to 130 MHz ADT8-1T+ ADT8-1T Maximum Ratings Operating Temperature Storage Temperature RF Power DC Current .
