BFCN-5100+, BFCN-5100+-Mini Bandpass Filter

BFCN-5100+ Description

Ceramic Bandpass Filter BFCN-5100+ 50Ω 3100 to 7100 MHz .

BFCN-5100+ Features

* Extremely wide passband, 3100-7100 MHz
* Low loss

BFCN-5100+ Applications

* Harmonic Rejection
* Transmitters / receivers
* EW Generic photo used for illustration purposes only CASE STYLE: FV1206-6 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications Reel Size 7” Available

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BFCN-5100+, BFCN-5100+-Mini. Please refer to the document for exact specifications by model.

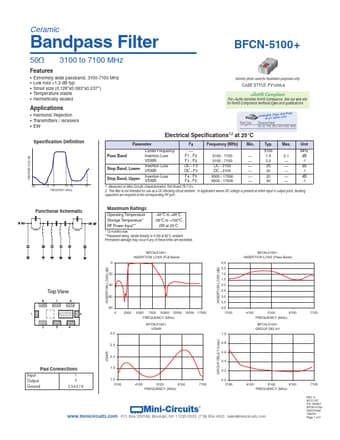

datasheet Preview Page 2

Datasheet Details

Part number
BFCN-5100+, BFCN-5100+-Mini
Manufacturer
Mini-Circuits
File Size
366.54 KB
Datasheet
BFCN-5100+-Mini-Circuits.pdf
Description
Bandpass Filter
Note
This datasheet PDF includes multiple part numbers: BFCN-5100+, BFCN-5100+-Mini.
Please refer to the document for exact specifications by model.
