BFCN-5200+, BFCN-5200+-Mini Bandpass Filter

BFCN-5200+ Description

Ceramic Bandpass Filter 50Ω 4250 to 6300 MHz The Big Deal * LTCC construction * Temperature stable from -55 to +100°C * Small .

BFCN-5200+ Features

* Feature LTCC Construction Tiny size (0.126 x .063 x .037”) Wrap-around terminations Wide operating temperature range, -55 to +100°C Advantages Provides a rugged package well suited for tough environments such as high humidity and temperature extremes. Saves space in dense circuit boards and minimiz

BFCN-5200+ Applications

* Harmonic rejection
* Transmitters / Receivers Specification Definition DC F3 F1 F2 F4 F5 FREQUENCY (MHz) Generic photo used for illustration purposes only CASE STYLE: FV1206-4 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance method

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BFCN-5200+, BFCN-5200+-Mini. Please refer to the document for exact specifications by model.

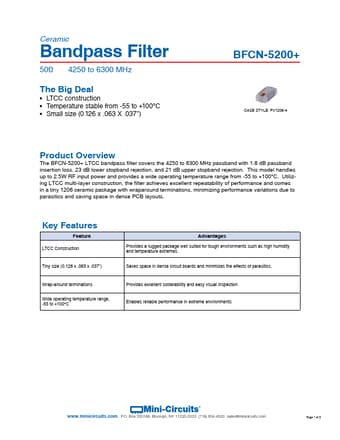

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BFCN-5200+, BFCN-5200+-Mini
Manufacturer
Mini-Circuits
File Size
417.24 KB
Datasheet
BFCN-5200+-Mini-Circuits.pdf
Description
Bandpass Filter
Note
This datasheet PDF includes multiple part numbers: BFCN-5200+, BFCN-5200+-Mini.
Please refer to the document for exact specifications by model.
