CBL-3NM-75 Test Cable

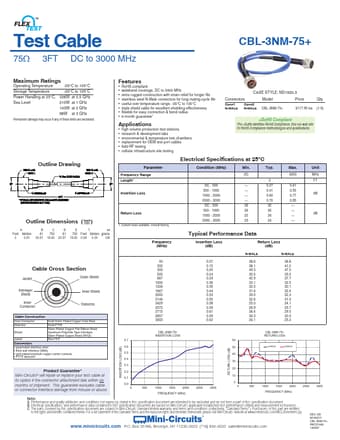

Test CableFLEXTES™T 75Ω 3FT DC to 3000 MHz CBL-3NM-75+ Maximum Ratings Operating Temperature -55°C to 105°C Storage Temperature -55°C to 105°C Power Handling at 25°C, 338W at 0.5 GHz Sea Level 210W at 1 GHz 143W at 2 GHz 98W at 3 GHz Permanent damage may occur if any of these limits are exceeded. Outline Drawing Outline Dimensions ( )imncmh A Feet Meters 3 0.91 B .81 20.57 C .750 19.05 D .81 20.57 ET wt .750 Feet Met.

CBL-3NM-75 Features

* RoHS compliant

* wideband coverage, DC to 3000 MHz

* extra rugged construction with strain relief for longer life

* stainless steel N-Male connectors for long mating-cycle life

* useful over temperature range, -55°C to 105°C

* triple shield cable for

CBL-3NM-75-Mini-Circuits.pdf

CBL-3NM-75 Datasheet Preview — This datasheet PDF includes multiple part numbers: CBL-3NM-75, CBL-3NM-75-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CBL-3NM-75, CBL-3NM-75-Mini

Manufacturer:

Mini-Circuits

File Size:

307.69 KB

Description:

Test cable.

Note:

This datasheet PDF includes multiple part numbers: CBL-3NM-75, CBL-3NM-75-Mini.
Please refer to the document for exact specifications by model.
