DAT-15R5A+

Digital Step Attenuator

DAT-15R5A+ Features

* Feature Wideband operation, specified from DC to 4.0 GHz Advantages Can be used in multiple applications such as communications, satellite and defense, reducing part count. Serial or parallel interface Models available with serial or parallel interface mode to suit customer demand. Good VSWR, 1.

DAT-15R5A+ General Description

The DAT-15R5A-SP+ is a 50Ω digital step attenuator that provides adjustable attenuation of 0 to 15.5 dB in 0.5 dB steps. The control is a 5-bit serial interface, operating with a single (positive) supply voltage. DAT15R5A-SP+ is produced by a unique CMOS process on silicon, offering the performance .

DAT-15R5A+ Datasheet (543.73 KB)

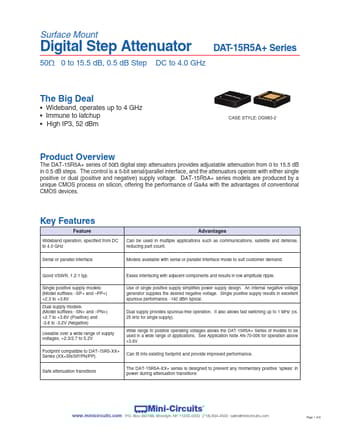

Preview of DAT-15R5A+ PDF

Datasheet Details

Part number:

DAT-15R5A+

Manufacturer:

Mini-Circuits

File Size:

543.73 KB

Description:

Digital step attenuator.
Surface Mount Digital Step Attenuator DAT-15R5A+ Series 50Ω 0 to 15.5 dB, 0.5 dB Step DC to 4.0 GHz The Big Deal

* Wideband, operates up to 4.
