DAT-31A+ - Digital Step Attenuator

The DAT-31A-PP+ is a 50W RF digital step attenuator that offers an attenuation range up to 31 dB in 1.0 dB steps.

The control is a 5-bit parallel interface, operating on single (positive) supply voltage.

The DAT-31APP+ is produced using a unique CMOS process on silicon, offering the performance of G

Surface Mount Digital Step Attenuator 50Ω 0 to 31 dB, 1.0 dB Step DC to 4.0 GHz DAT-31A+ Series The Big Deal Wideband, operates up to 4 GHz Immune to latchup High IP3, 52 dBm CASE STYLE: DG983-2 Product Overview The DAT-31A+ series of 50Ω digital step attenuators provides adjustable attenuation from 0 to 31 dB in 1.0 dB steps.

The control is a 5-bit serial/parallel interface, and the attenuators operate with either single positive or dual (positive and negative)

DAT-31A+ Features

* Feature Wideband operation, specified from DC to 4.0 GHz Advantages Can be used in multiple applications such as communications, satellite and defense, reducing part count. Serial or parallel interface Models available with serial or parallel interface mode to suit customer demand. Good VSWR, 1.

DAT-31A+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: DAT-31A+, DAT-31A+-Mini. Please refer to the document for exact specifications by model.

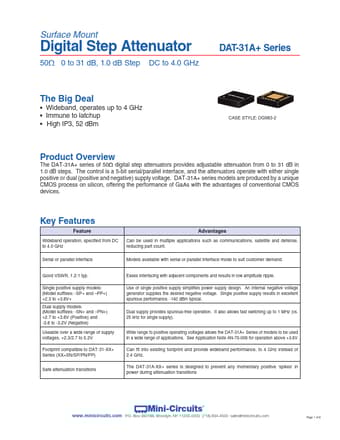

DAT-31A+ Datasheet Preview Page 2 DAT-31A+ Datasheet Preview Page 3

Datasheet Details

Part number:

DAT-31A+, DAT-31A+-Mini

Manufacturer:

Mini-Circuits

File Size:

482.70 KB

Description:

Digital step attenuator.

Note:

This datasheet PDF includes multiple part numbers: DAT-31A+, DAT-31A+-Mini.
Please refer to the document for exact specifications by model.
