GALI-49+ Monolithic Amplifier

Gali 49+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot, and is enclosed in a SOT-89 package. It uses patented Transient Protected Darlington configuration and is fabricated using InGaP HBT technology. Gali 49+ is designed to be ru.

GALI-49+ Features

* Miniature SOT-89 Package

* Frequency range, DC to 5 GHz

* Internally Matched to 50 Ohms

* Output power, 16.4 dBm typ.

* Excellent package for heat dissipation, exposed metal bottom

* Aqueous washable

* Protected by US Patent 6,943,629 Applica

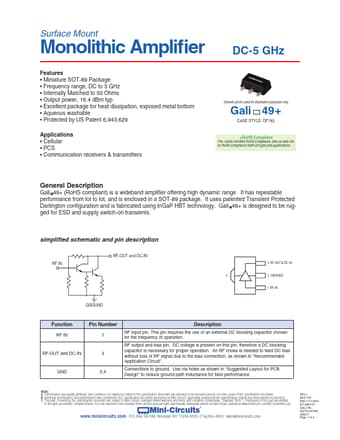

GALI-49+Mini-Circuits.pdf

GALI-49+ Datasheet Preview — This datasheet PDF includes multiple part numbers: GALI-49+, GALI-49+Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GALI-49+, GALI-49+Mini

Manufacturer:

Mini-Circuits

File Size:

212.27 KB

Description:

Monolithic amplifier.

Note:

This datasheet PDF includes multiple part numbers: GALI-49+, GALI-49+Mini.
Please refer to the document for exact specifications by model.
