GALI-6F+, GALI-6F+-Mini - Monolithic Amplifier

GALI-6F+ Description

Surface Mount Monolithic Amplifier DC-4 GHz Product .
Gali 6F+ (RoHS compliant) is a wideband amplifier offering high dynamic range.

GALI-6F+ Features

* InGaP HBT microwave amplifier
* Miniature SOT-89 package
* Internally Matched to 50 Ohms
* Frequency range, DC to 4 GHz
* Output power, 15.8 dBm typ.
* Excellent package for heat dissipation, exposed metal bottom
* Low thermal resistance for

GALI-6F+ Applications

* Cellular
* PCS
* Communication receivers & transmitters Generic photo used for illustration purposes only Gali 6F+ CASE STYLE: DF782 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications General Descr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GALI-6F+, GALI-6F+-Mini. Please refer to the document for exact specifications by model.

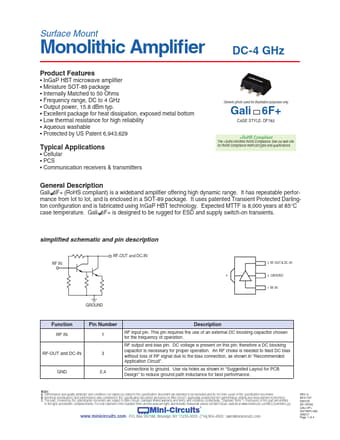

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GALI-6F+, GALI-6F+-Mini
Manufacturer
Mini-Circuits
File Size
212.01 KB
Datasheet
GALI-6F+-Mini-Circuits.pdf
Description
Monolithic Amplifier
Note
This datasheet PDF includes multiple part numbers: GALI-6F+, GALI-6F+-Mini.
Please refer to the document for exact specifications by model.
