GALI-74+

Monolithic Amplifier

GALI-74+ Features

* InGaP HBT IF and RF amplifier

* Frequency range, DC to 1 GHz

* High gain, 25.1 dB typ. at 0.1 GHz

* Internally Matched to 50 Ohms

* +19.2 dBm typ. output power at 0.1 GHz

* High IP3, +38 dBm at 0.1 GHz

* Low noise figure, 2.7 dB typ.

GALI-74+ General Description

Gali 74+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot, and is enclosed in a SOT-89 package. It uses patented Transient Protected Darlington configuration and is fabricated using InGaP HBT technology. Expected MTTF is 500 years at.

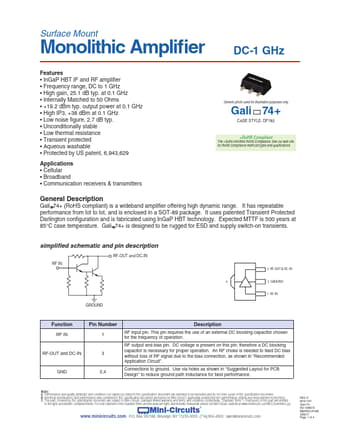

GALI-74+ Datasheet (210.74 KB)

Preview of GALI-74+ PDF

Datasheet Details

Part number:

GALI-74+

Manufacturer:

Mini-Circuits

File Size:

210.74 KB

Description:

Monolithic amplifier.
