Gali-51F+ Monolithic Amplifier

Gali 51F+ (RoHS compliant) is a wideband amplifier offering high dynamic range. Lead finish is SnAgNi. It has repeatable performance from lot to lot, and is enclosed in a SOT-89 package. It uses patented Transient Protected Darlington configuration and is fabricated using InGaP HBT technology. Expec.

Gali-51F+ Features

* InGaP HBT microwave amplifier

* Miniature SOT-89 package

* Internally Matched to 50 Ohms

* Frequency range, DC to 4 GHz

* Output power, 15.9 dBm typ.

* Excellent package for heat dissipation, exposed metal bottom

* Low thermal resistance for

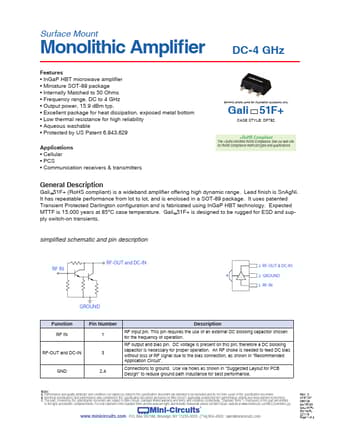

Gali-51F+-Mini-Circuits.pdf

Gali-51F+ Datasheet Preview — This datasheet PDF includes multiple part numbers: Gali-51F+, Gali-51F+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Gali-51F+, Gali-51F+-Mini

Manufacturer:

Mini-Circuits

File Size:

292.25 KB

Description:

Monolithic amplifier.

Note:

This datasheet PDF includes multiple part numbers: Gali-51F+, Gali-51F+-Mini.
Please refer to the document for exact specifications by model.
