HFCN-1200+ Datasheet, Filter, Mini-Circuits

HFCN-1200+ Features

  • Filter y Low cost y Small size y 7 sections y Temperature stable y LTCC construction y Excellent power handling, 7W y Hermetically sealed Generic photo used for illustration purposes only CAS

PDF File Details

Part number:

HFCN-1200+

Manufacturer:

Mini-Circuits

File Size:

436.39kb

Download:

📄 Datasheet

Description:

High pass filter.

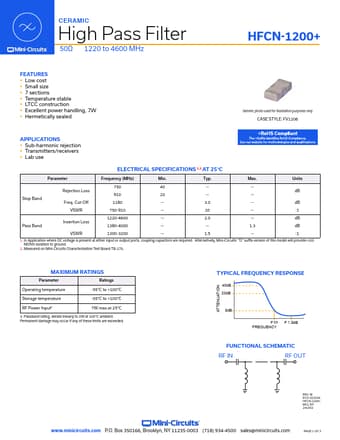

Datasheet Preview: HFCN-1200+ 📥 Download PDF (436.39kb)
Page 2 of HFCN-1200+ Page 3 of HFCN-1200+

HFCN-1200+ Application

  • Applications y Sub-harmonic rejection y Transmitters/receivers y Lab use ELECTRICAL SPECIFICATIONS 1,2 AT 25°C Parameter Frequency (MHz) Min. T
