PSA4-5043+ Monolithic Amplifier

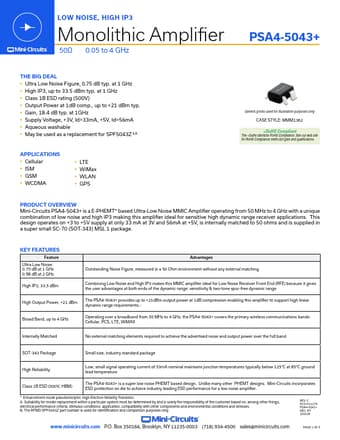

LOW NOISE, HIGH IP3 Monolithic Amplifier 50Ω 0.05 to 4 GHz PSA4-5043+ THE BIG DEAL y Ultra Low Noise Figure, 0.75 dB typ. at 1 GHz y High IP3, up to 33.5 dBm typ. at 1 GHz y Class 1B ESD rating (500V) y Output Power at 1dB comp., up to +21 dBm typ. y Gain, 18.4 dB typ. at 1GHz y Supply Voltage, +3V, Id=33mA, +5V, Id=56mA y Aqueous washable y May be used as a replacement for SPF5043Z a,b APPLICATIONS y Cellular y ISM y GSM y WCDMA y LTE y WiMax y WLAN y GPS Generic photo used for illustratio.

PSA4-5043+ Features

* Feature Ultra Low Noise: 0.75 dB at 1 GHz 0.98 dB at 2 GHz High IP3, 33.5 dBm Advantages Outstanding Noise Figure, measured in a 50 Ohm environment without any external matching Combining Low Noise and High IP3 makes this MMIC amplifier ideal for Low Noise Receiver Front End (RFE) because it gives
