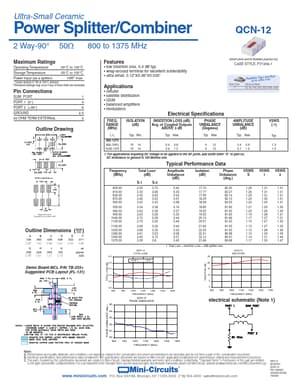

QCN-12 Datasheet, Splitter/combiner, Mini-Circuits

QCN-12 Features

• Splitter/combiner
• low insertion loss, 0.4 dB typ.
• wrap-around terminal for excellent solderability
• ultra small, 0.12"X0.06"X0.035" Applications
• cellular

PDF File Details

Part number:

QCN-12

Manufacturer:

Mini-Circuits

File Size:

268.26kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

QCN-12 Application

• Applications
• cellular
• satellite distribution
• GSM
• balanced amplifiers
• modulators FREQ. RANGE (MHz)

TAGS

QCN-12

Mini-Circuits
