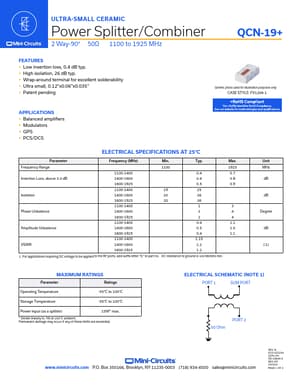

QCN-19+ Datasheet, splitter/combiner equivalent, Mini-Circuits

QCN-19+ Features

• Splitter/combiner y Low insertion loss, 0.4 dB typ. y High isolation, 26 dB typ. y Wrap-around terminal for excellent solderability y Ultra small, 0.12"x0.06"x0.035" y Patent pending Generic photo used

PDF File Details

Part number:

QCN-19+

Manufacturer:

Mini-Circuits

File Size:

418.98kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

QCN-19+ Application

• Applications y Balanced amplifiers y Modulators y GPS y PCS/DCS ELECTRICAL SPECIFICATIONS AT 25°C Parameter Frequency (MHz) Min. Typ. Frequenc
