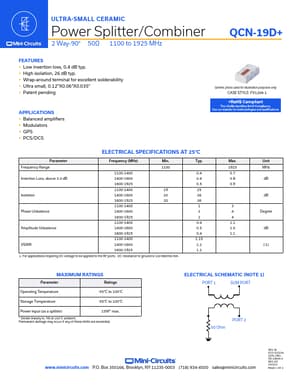

QCN-19D+ Datasheet, Splitter/combiner, Mini-Circuits

QCN-19D+ Features

• Splitter/combiner y Low insertion loss, 0.4 dB typ. y High isolation, 26 dB typ. y Wrap-around terminal for excellent solderability y Ultra small, 0.12"X0.06"X0.035" y Patent pending Generic photo used

PDF File Details

Part number:

QCN-19D+

Manufacturer:

Mini-Circuits

File Size:

419.51kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

QCN-19D+ Application

• Applications y Balanced amplifiers y Modulators y GPS y PCS/DCS ELECTRICAL SPECIFICATIONS AT 25°C Parameter Frequency (MHz) Min. Frequency Rang
