QCN-45D+ Datasheet, Splitter/combiner, Mini-Circuits

QCN-45D+ Features

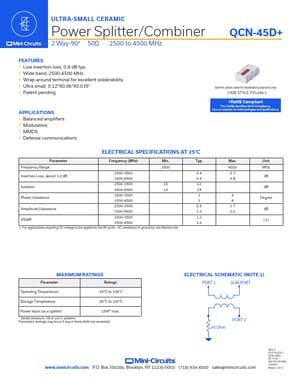

• Splitter/combiner y Low insertion loss, 0.4 dB typ. y Wide band, 2500-4500 MHz y Wrap-around terminal for excellent solderability y Ultra small, 0.12"X0.06"X0.035" y Patent pending Generic photo used fo

PDF File Details

Part number:

QCN-45D+

Manufacturer:

Mini-Circuits

File Size:

415.48kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

QCN-45D+ Application

• Applications y Balanced amplifiers y Modulators y MMDS y Defense communications ELECTRICAL SPECIFICATIONS AT 25°C Parameter Frequency (MHz) Min.
