SBTC-2-25L, SBTC-2-25L_Mini, Power Splitter/Combiners 2 Way-0 50 1000 to 2500 MHz

Surface Mount, Micro-Miniature Power Splitter/Combiners 2 Way-0° 50Ω Maximum Ratings Operating Temperature Storage Temperature Power Input (as a spli.

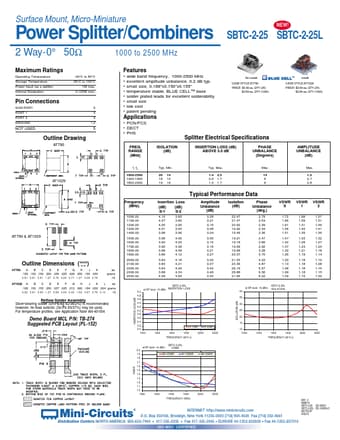

datasheet Preview Page 1 from Datasheet4u.com

SBTC-2-25L_Mini-Circuits.pdf

SBTC-2-25L Datasheet Preview — This datasheet PDF includes multiple part numbers: SBTC-2-25L, SBTC-2-25L_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBTC-2-25L, SBTC-2-25L_Mini

Manufacturer:

Mini-Circuits

File Size:

99.41 KB

Description:

Power Splitter/Combiners 2 Way-0 50 1000 to 2500 MHz

Note:

This datasheet PDF includes multiple part numbers: SBTC-2-25L, SBTC-2-25L_Mini.
Please refer to the document for exact specifications by model.

Features

* wide band frequency, 1000-2500 MHz excellent amplitude unbalance, 0.2 dB typ. small size, 0.166"x0.150"x0.155" temperature stable, BLUE CELL™ base solder plated leads for excellent solderability small size low cost paten

Applications

* PCN/PCS
* DECT
* PHS NOT USED 5 Outline Drawing AT790 FREQ. RANGE (MHz) fL-fU 1000-2500 1400-1800 1800-2000 Splitter Electrical Specifications ISOLATION (dB) INSERTION LOSS (dB) ABOVE 3.0 dB PHASE UNBALANCE (Degrees) Max. 14 8 8 AMPLITUDE UNBALANCE (dB) Max. 1.2 0.7 0.
