SYM-18H+ Frequency Mixer

High IP3 Frequency Mixer Level 17 (LO Power +17 dBm) 5 to 1800 MHz SYM-18H+ Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C RF Power 200mW IF Current 40mA Permanent damage may occur if any of these limits are exceeded. Pin Connections LO 2 RF 1 IF 3 GROUND 4,5,6 Outline Drawing PCB Land Pattern Suggested Layout, Tolerance to be within ±.002 Outline Dimensions ( inch mm ) ABCDE FG H JK .38 .50 .23 .020 .075 .250 .425 .187 .050 .

SYM-18H+ Features

* low conversion loss, 5.75 dB typ.

* excellent L-R isolation, 45 dB typ.; L-I, 50 dB typ.

* IF response to DC Applications

* VHF/UHF TV Generic photo used for illustration purposes only CASE STYLE: TTT167 +RoHS Compliant The +Suffix identifies RoHS Compliance. See o

SYM-18H+-Mini-Circuits.pdf

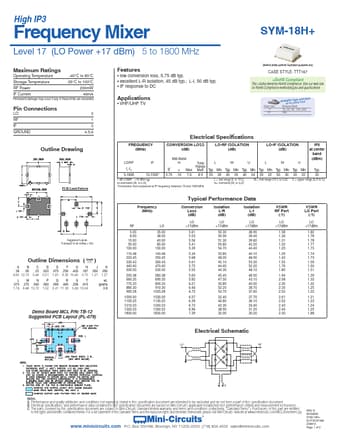

SYM-18H+ Datasheet Preview — This datasheet PDF includes multiple part numbers: SYM-18H+, SYM-18H+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYM-18H+, SYM-18H+-Mini

Manufacturer:

Mini-Circuits

File Size:

356.37 KB

Description:

Frequency mixer.

Note:

This datasheet PDF includes multiple part numbers: SYM-18H+, SYM-18H+-Mini.
Please refer to the document for exact specifications by model.
