SYM-30DHW, SYM-30DHW_Mini Surface Mount Frequency Mixer

SYM-30DHW Description

www.DataSheet4U.com Surface Mount Frequency Mixer Level 17 (LO Power +17dBm) .

SYM-30DHW Features

* wide bandwidth, 5-3000 MHz good L-R isolation, 40 dB typ. excellent L-I isolation, 44 dB typ. wide IF bandwidth, useable to 3 GHz high IP3, 29 dBm typ. CDMA GSM DCS PCN MODEL NO. FREQUENCY (MHz) LO/RF fL- fU SY

SYM-30DHW Applications

* + RoHS compliant in accordance with EU Directive (2002/95/EC) See our web site for RoHS Compliance methodologies and qualifications. Mixer Electrical Specifications CONVERSION LOSS (dB) _ x 5-1500 6.5 Mid-Band m σ .10 Max. 8.3 LO-RF ISOLATION (dB) M Typ. Min. 40 30 LO-IF ISOLATION (dB) M Typ. Mi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SYM-30DHW, SYM-30DHW_Mini. Please refer to the document for exact specifications by model.

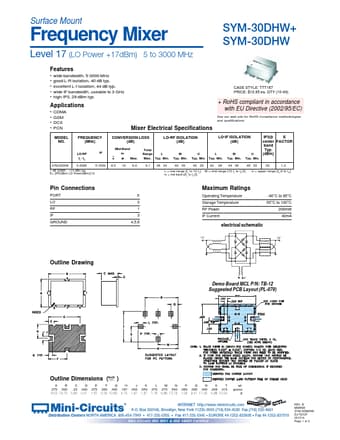

datasheet Preview Page 2

Datasheet Details

Part number
SYM-30DHW, SYM-30DHW_Mini
Manufacturer
Mini-Circuits
File Size
273.06 KB
Datasheet
SYM-30DHW_Mini-Circuits.pdf
Description
Surface Mount Frequency Mixer
Note
This datasheet PDF includes multiple part numbers: SYM-30DHW, SYM-30DHW_Mini.
Please refer to the document for exact specifications by model.
