VHF-1500, VHF-1500_Mini, High Pass Filters 850 to 7000 MHz

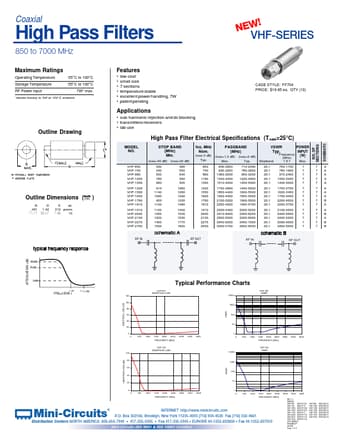

Coaxial High Pass Filters 850 to 7000 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input *derate linearly to 3W at 100°.

datasheet Preview Page 1 from Datasheet4u.com

VHF-1500_Mini-Circuits.pdf

VHF-1500 Datasheet Preview — This datasheet PDF includes multiple part numbers: VHF-1500, VHF-1500_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VHF-1500, VHF-1500_Mini

Manufacturer:

Mini-Circuits

File Size:

104.15 KB

Description:

High Pass Filters 850 to 7000 MHz

Note:

This datasheet PDF includes multiple part numbers: VHF-1500, VHF-1500_Mini.
Please refer to the document for exact specifications by model.

Features

* -55°C to 100°C -55°C to 100°C 7W
* max.

Applications

* sub-harmonic rejection and dc blocking
* transmitters/receivers
* lab use Outline Drawing High Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. STOP BAND (MHz) Min. (loss>40 dB) VHF-650 VHF-740 VHF-880 VHF-1200 VHF-1300 VHF-1320 VHF-1500 VHF-1600 VHF-1760 VHF-1
