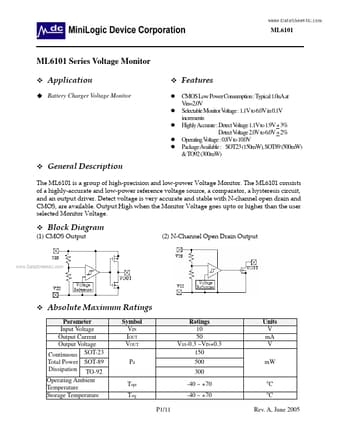

ML6101 Voltage Monitor

The ML6101 is a group of high-precision and low-power Voltage Monitor. The ML6101 consists of a highly-accurate and low-power reference voltage source, a comparator, a hysteresis circuit, and an output driver. Detect voltage is very accurate and stable with N-channel open drain and CMOS, are availab.

ML6101 Features

* CMOS Low Power Consumption : Typical 1.0uAat Vin=2.0V Selectable Monitor V oltage : 1.1V to 6.0V in 0.1V increments HighlyAccurate : Detect V oltage 1.1V to 1.9V + 3% Detect V oltage 2.0V to 6.0V + 2% Operating V oltage : 0.8V to 10.0V PackageAvailable : SOT23 (150mW), SOT89 (500mW) & TO92 (300mW)
