ML610404 - 8-bit Microcontroller

LAPIS

📥 Download Datasheet

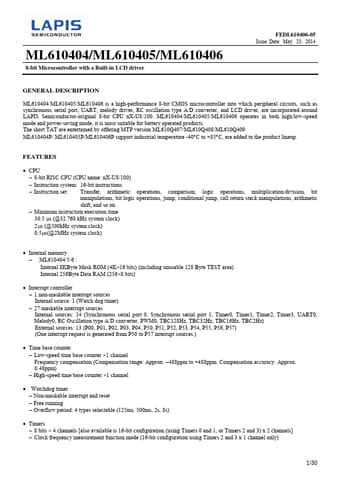

ML610404 Datasheet Preview — Preview of ML610404 PDF

Datasheet Details

Part number	ML610404
Manufacturer	LAPIS
File Size	363.58 KB
Description	8-bit Microcontroller
Datasheet	ML610404-LAPIS.pdf

ML610404 Product details

Description

ML610404/ML610405/ML610406 is a high-performance 8-bit CMOS microcontroller into which peripheral circuits, such as synchronous serial port, UART, melody driver, RC oscillation type A/D converter, and LCD driver, are incorporated around LAPIS Semiconductor-original 8-bit CPU nX-U8/100.

Features

CPU.
8-bit RISC CPU (CPU name: nX-U8/100).
Instruction system: 16-bit instructions.
Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic.
