ML610405

8-bit Microcontroller

LAPIS

ML610405 Features

* CPU

* 8-bit RISC CPU (CPU name: nX-U8/100)

* Instruction system: 16-bit instructions

* Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic

ML610405 General Description

ML610404/ML610405/ML610406 is a high-performance 8-bit CMOS microcontroller into which peripheral circuits, such as synchronous serial port, UART, melody driver, RC oscillation type A/D converter, and LCD driver, are incorporated around LAPIS Semiconductor-original 8-bit CPU nX-U8/100. ML610404/ML61.

ML610405 Datasheet (363.58 KB)

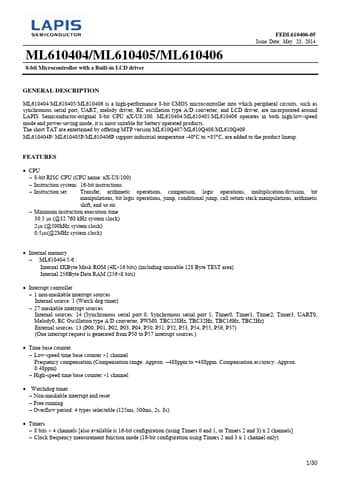

ML610405 Datasheet Preview — Preview of ML610405 PDF

Datasheet Details

Part number:

ML610405

Manufacturer:

LAPIS

File Size:

363.58 KB

Description:

8-bit microcontroller.
