MAU316, MAU300, Single & Dual Output DC/DC Converters

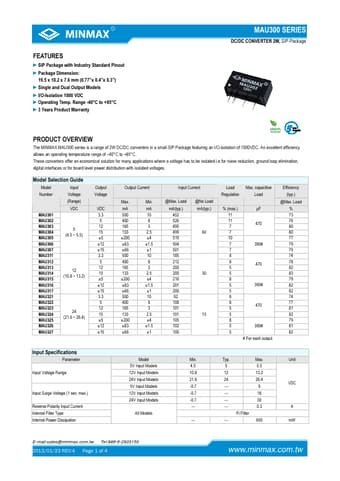

datasheet Preview Page 1 from Datasheet4u.com

MAU300_MinmaxTechnology.pdf

MAU316 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAU316, MAU300. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAU316, MAU300

Manufacturer:

Minmax Technology

File Size:

505.48 KB

Description:

Single & Dual Output DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: MAU316, MAU300.
Please refer to the document for exact specifications by model.

Features

* SIP Package with Industry Standard Pinout
* Package Dimension: 19.5 x 10.2 x 7.6 mm (0.77”x 0.4”x 0.3”)
* Single and Dual Output Models
* I/O-Isolation 1000 VDC
* Operating Temp. Range -40°C to +85°C
* 3 Years Product Warranty MAU300 SERIES DC/DC CONVERTER 2W, SIP-Package PRODU

Applications

* where a voltage has to be isolated i. e for noise reduction, ground loop elimination, digital interfaces or for board level power distribution with isolated voltages. Model Selection Guide Model Input Number Voltage (Range) MAU301 VDC MAU302 MAU303 MAU304 MAU305 5 (4.5 ~ 5.5) MAU306 MAU3
