MIW2100 Datasheet, Converters, Minmax Technology

MIW2100 Features

  • Converters y y y y y y y y y y Efficiency up to 83% 4200VDC Isolation MTBF > 1,000,000 Hours 4:1 Wide Input Range Complies With EN55022 Class B All I/O Clearance and Creepage Distance 2.0 mm Min.

PDF File Details

Part number:

MIW2100

Manufacturer:

Minmax Technology

File Size:

254.96kb

Download:

📄 Datasheet

Description:

(miw2100 series) single & dual output dc/dc converters.

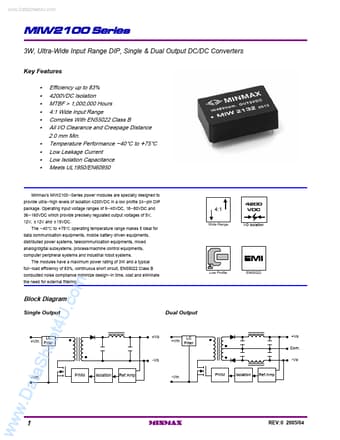

Datasheet Preview: MIW2100 📥 Download PDF (254.96kb)
Page 2 of MIW2100 Page 3 of MIW2100

MIW2100 Application

  • Applications where power is supplied over long lines and output loading is high, it may be necessary to use a capacitor on the input to insure start
