MIW213x, MIW2100 - (MIW2100 Series) Single & Dual Output DC/DC Converters

Minmax Technology

The MIW213x by Minmax Technology is a (MIW2100 Series) Single & Dual Output DC/DC Converters. Below is the official datasheet preview.

Datasheet Details

Part number	MIW213x, MIW2100
Manufacturer	Minmax Technology
File Size	254.96 KB
Description	(MIW2100 Series) Single & Dual Output DC/DC Converters
Datasheet	MIW2100_MinmaxTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MIW213x, MIW2100. Please refer to the document for exact specifications by model.

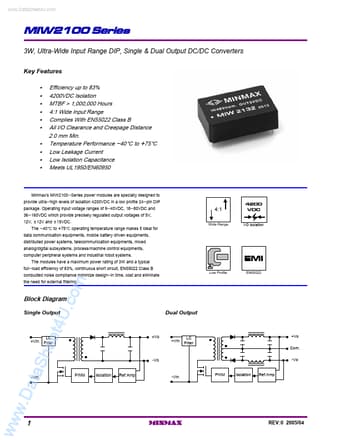

Additional preview pages of the MIW213x datasheet.

y y y y y y y y y y Efficiency up to 83% 4200VDC Isolation MTBF > 1,000,000 Hours 4:1 Wide Input Range Complies With EN55022 Class B All I/O Clearance and Creepage Distance 2.0 mm Min. Temperature Performance -40] to +75] Low Leakage Current Low Isolation Capacitance Meets UL1950/EN60950 Minmax's MIW2100-Series power modules are specially designed to provide ultra-high levels of isolation 4200VDC in a low profile 24-pin DIP package. Operating input voltage ranges of 9-40VDC, 18-80VDC and 36-160.
